ANALOG VOIP MEDIA GATEWAY

Analog Overview

SMG1000 Overview

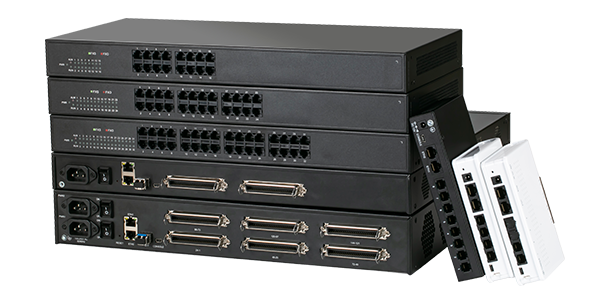

2~144Ports FXS Analog VoIP Media Gateway, Cost Effectively And Reliably Connect Your Legacy Networks to VOIP

  • Modular & Standalone 2~144 Ports
  • Seamlessly Migrate FXO/FXS to SIP
  • Auto-Provision With Platform & IP-Phone
  • DSP-Based Codecs & Faxing & Conferencing
Maximize and Migrate Value of Existing PSTN Networks To VoIP

With a simple and economical way to help legacy telephone,fax machine and PBXs interconnect with IP network, Synway's 2~144 ports analog FXS/FXO gateway enables call center and multi-branch enterprises to process powerful, versatile and efficient VoIP solutions with unparalleled cost advantages. Connected between a PBX, LAN or WAN, the 2~144 ports FXS/FXO VoIP Gateway converts analog PSTN messages into a format suitable for transmission over standard IP networks.

Rich Customizable Features and Robust Telco' architecture

Designed for voicemail and unified messaging applications,the 2~144 Ports Analog VoIP Gateway SMG1000 series has a 10/100/1000M (optional) Base-T Ethernet connection for connecting legacy PBX to a LAN. The analog loop start functionality supports integration via in-band signaling (DTMF or FSK), serial protocols, as well as T.38 for fax transmissions over IP (FoIP).

Rich Customizable Features and Robust Telco' architecture

Designed for voicemail and unified messaging applications,the 2~144 Ports Analog VoIP Gateway SMG1000 series has a 10/100/1000M (optional) Base-T Ethernet connection for connecting legacy PBX to a LAN. The analog loop start functionality supports integration via in-band signaling (DTMF or FSK), serial protocols, as well as T.38 for fax transmissions over IP (FoIP).

Contact Synway for This Product
Features
  • Completely non-blocking architecture and Scalable System
  • Easy integration with existing telephony interfaces
  • Open-standard SIP support and register to multiple SIP proxy servers
  • Make and receive IP calls from analog extensions
  • Call budgeting based on allocated amount, minutes and call count
  • Manageable based call routing TDP-IP/IP-TDM
  • Restrict unwanted calls with list of denied numbers
  • Real-time call record send to CDR server
  • Caller ID presentation and restriction
  • Hotline extension setting
  • Web-based remote administration
  • Consol access via Telnet, SSH.
Capabilities
  • High performance VoIP connectivity for SMBs
  • Voice optimization to ensure better user experiences
  • Enhanced call routing ability with high voice quality
  • Easy to install, configure, and maintain
  • Support IPv4 and IPv6 international network
  • Data/voice/management VLAN and more
  • Build-in firewall and access rules
  • Support SNMP/TR069/Auto-Provision
  • Cloud-based management and bandwidth optimization
  • Support SIP, MGCP or other customizable protocols
  • Primary/Backup SIP Servers
  • Flexible routing and manipulation
Core Specifications
Physical Interface Phone Interface: 4 Ports FXS, RJ-11(some models are RJ21 available)
Ethernet Interface: 2* RJ-45 10/100Mbps Base-T Ethernet, Female RJ-45
1000M LAN/WAN available for some product models while required
VoIP Protocols

TLS / SRTP
OpenVPN
SIP V2.0 (RFC 3261, 3262, 3264)
IMS/3GPP
SDP
REFER (RFC 3515)
RTP/RTCP
STUN  (RFC3489)
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
DHCP/PPPoE
TFTP/HTTP/HTTPS
DNS/DNSSRV (RFC 1706/RFC2782).
VLAN802. 1P/802.1Q.

Call & Routing

Port Groups
IP Trunks
Primary and Secondary SIP Account
2~128 Inbound/Outbound Routing
Number Manipulation
Digit maps
TDM to IP or IP to TDM
IP load balancing
IP fault tolerance

Voice Capability G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
Comfort Noise Generation(CNG)
Echo Cancellation(G.168)
DTMF mode: Signal/RFC2833/INBAND
Silence suppression with comfort noise
G.168 automatic echo cancellation
Call Progress Analysis (CPA), including Positive Voice Detection, Positive Answering
Machine Detection (PAMD), DTMF detection, and fax tone detection
Manageable based call routing TDP-IP/IP-TDM.
Restrict unwanted calls with list of denied numbers.
Voice Activity Detection (VAD)
Adaptive (Dynamic) Jitter Buffer
Programmable Gain Control
Hook Flash
FoIP Protocol & Faxing T.38 for transmission over a packet network
T.38/Pass-through, up to 14.4kbps
T.38 FoIP: transcode fax from T.30 fax protocol (supporting V.17) modulation schemes
Network Capability SupportedDial Mode: DTMF and PulseCall waitingStatic IP, PPPoE, DHCP Client
IPv4, IPv6
Static/dynamic ARP
DIFFServ, ToS
NAT (Rout and Bridge)+
MAC Address Clone
Static routing+
Built-in Firewalls
QoS, Traffic Shaping
Voice/Data/Management Vlan
Maintenance & Upgrading SNMP/TR069.
Auto Provision
Action URL
Digit map
Web/Telnet. ACL
Configuration Backup/Restore
Bandwidth Optimization
Routing Rules based Prefixes
Firmware Upgrade via WEB
Syslog and CDR.
Access Rule list.
Network Capture
Outward Test(GR909).
Automatic Time Synchronization
IVR local Maintenance.
Cloud-based Management
Caller/Called Number Manipulation
Open-standard SIP support and register to multiple SIP proxy servers.
Application Capabilities Power Supply: 100-240V, 50-60Hz+Call waiting
Blind Transfer
Attend Transfer
Call forward on Busy
Call forward on No Reply
Unconditional Call Forward
HotlineCall hold
DND
Call Pickup
3-way conference
Voicemail
Conferencing Resource

Call budgeting based on allocated amount, minutes and call count
Complete non-blocking architecture and Scalable System
Hotline extension setting
Support 3-Way and Multi-Way Conferencin
