IP-PBX & MULTIMEDIA PLATFORM

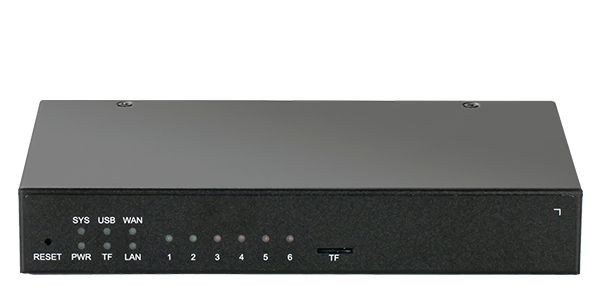

UC200-60

60 Con-Session IP-PBX with FXO/FXS Interface

IP-PBX Overview

HomeUC200-60

60 concurrent calls
High Registered Users
Rich UC Features
High Customizability

A Complete Range of UC Features

The UC200-60 is an IP PBX appliance designed to bring enterprise-grade unified communications and security protection to all levels of businesses at an unprecedented price point without any licensing fees, costs-per-feature, or recurring fees. It enables enterprises to unify multiple communication technologies, such as comprehensive voice, fax, calling, conferencing, video/audio surveillance, data tools, security surveillance, mobility, and facility access management into one commonly managed or

Robust Architecture and Finest Functions

With an advanced hardware platform, dual power supply and software functionalities, this IP-PBX can support up to 1,000 registered users and offer effortless setup and deployment via the web-browser user interface. Besides auto-discovery of diverse endpoints and auto-provisioning, the UC series IP-PBX offers a set of comprehensive features, including customizable call-routing, multi-level IVRs, call queues, auto-attendant, call detail records (CDR), multi-site peering, voicemail/fax forwarding t

Robust Architecture and Finest Functions

With an advanced hardware platform, dual power supply and software functionalities, this IP-PBX can support up to 1,000 registered users and offer effortless setup and deployment via the web-browser user interface. Besides auto-discovery of diverse endpoints and auto-provisioning, the UC series IP-PBX offers a set of comprehensive features, including customizable call-routing, multi-level IVRs, call queues, auto-attendant, call detail records (CDR), multi-site peering, voicemail/fax forwarding t

Contact Synway for This Product

Get A Free Sample
Go Ahead!
Products Inquiry
Know more about it
Sales Consultancy
Be a Business Partner?
Specialist Channel
Specialist Support

Features

Robust Hardware Architecture

Integrated PSTN trunk FXO ports and analog telephone FXS ports with lifeline capability; Supports up to 1000 users, 80 SIP trunk accounts, up to 100 concurrent calls, 50 conference attendees; 1.5GHz ARM Quad-core processor, 1GB DDR RAM, 8GB EMMC Flash

Complete Range of Add-on Features

Multiple security mechanisms are available, including password, ACL, data filtering, etc. Besides, outbound routing, DISA, conference, call queue, IVR, voice mail, fax forwarding and other applications

High Security

Highest level of security protection using SRTP, TLS and HTTPS encryption; Hi-speed network ports with Integrated NAT router and built-in firewall, support PIN code setting to customize dynamic firewall.

Hi-Interoperability with Network

Support the super NAT network adaptability. In the system deployment, the remote SIP extension registered to IP-PBX need not any NAT traversal setting.

Capabilities

Intelligent Resource Allocation

Optimize system resource utilization and system efficiency via stochastic algorithm, effectively minimizing hitting over processor resource and improving reliability in any scenarios.

High User-Friendliness

leverage autoclip intelligent inbound routing mechanism. With call records server(CDR), this IP-PBX can intelligently match inbound call number with historic called one in autoclip. Moveable extension, call forwarding, DND, Multi-language auto-attendant, LDAP and XML phonebooks, flexible dial plan

Flexible Surveillance

Adapt flexible multiple-layer monitoring modes to protect privacy at maximum level and ensure high-level of security and reliability in most conditions.

Excellent Compatibility

Without NAT traversal setting, this IP-PBX could be compliant with other mainstream SIP endpoints or components with changeable IP addresses, which effectively reduces complexity of configuration.

Core Specifications

Interfaces	2 Analog FXS Ports with lifeline capability in case of power outage PSTN Line FXO Ports : 2 ports Network Interfaces : Dual10/100 RJ45 ports NAT Router Peripheral Ports : USB, TF LED Indicators :Power/Ready, Network, PSTN Line, USB, TF Reset Switch
Voice/Video Capabilities	Voice-over-Packet Capabilities: LEC with NLP Packetized Voice Protocol Unit, 32~128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer Voice and Fax Codecs: G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, GSM, AAL2-G.726-32; T.38 QoS:Multiple Layers
Signaling & Control	SupportedDial Mode: DTMF and PulseDTMF Methods: In Audio, RFC2833, and SIP INFO Provisioning Protocol & Plug-and-Play: TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of various IP endpoints with no ConfigurationOpenVPN
Technical Add-on Features	Caller ID :Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF Polarity Reversal/Wink, with enable/disable option upon call establishment and termination Maximum Call Capacity: Up to 50 even in SRTP encrypted Call Features: Call park, call forward, call transfer, DND, ring/hunt group, paging/ intercom etc.
Network Protocols	TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP(RFC3261), STUN, SRTP, TLS, LADP Disconnect Methods: Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
Application Enhancements	Call Center: Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ busy level, in-queue announcement Customizable Auto Attendant: Unlimited layers of IVR (Interactive Voice Response) Conference Bridges: Up to 25 simultaneous PSTN or IP participants
Security	Media Encryption: SRTP, TLS, HTTPS, TELNET with Fail2ban, Whitelist, Blacklist, alerts and more to protect against attacks
Multi-Language Support	English/Chinese/Traditional Chinese for Web UI; Customizable IVR/voice prompts for English, Chinese, British English; Customizable language pack to support any other languages
