DIGITAL VOIP MEDIA GATEWAY

E1 Gateway Overview

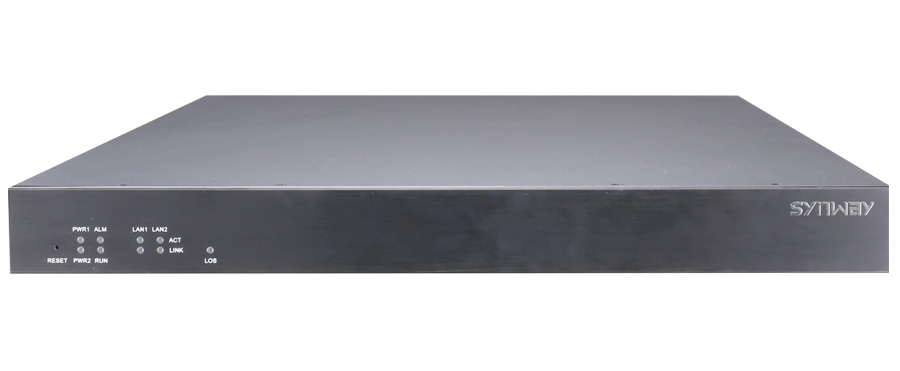

SMG3000 OVERVIEW

E1/T1 Ports Digital VoIP Media Gateway For Enterprises, Service Providers and Operators

  • Carrier-Grade Resilience
  • SS7/ISDN/R2/SIP Signaling
  • Telecom Reliability
  • SBC Add-on Functionality
Help SMB Transfer E1/T1 Network (ISDN/R2) to VOIP

With a more efficient manner to interconnect and deliver small-to-High scalability VoIP systems, SMG3000 enables small and medium enterprises to maximize value of their networks and services. Adopted by over 1,000 enterprises and service providers worldwide, these mini-sized VoIP digital gateways could convert digital PSTN message into SIP formats, and connects/secures sessions across IP and mixed network boundaries to support the seamless delivery of services.

Unparalleled Cost Efficiency and Telco' Architecture

Compared to rival products on marketplaces, SMG3000 features Telco’s high reliability and unparalleled cost efficiency, providing a perfect alternative for telecom operators and SPs. With complete signaling packets and full suite of media processing capability, SMG2000 series could deliver a range of values for your differentiation.

Unparalleled Cost Efficiency and Telco' Architecture

Compared to rival products on marketplaces, SMG3000 features Telco’s high reliability and unparalleled cost efficiency, providing a perfect alternative for telecom operators and SPs. With complete signaling packets and full suite of media processing capability, SMG2000 series could deliver a range of values for your differentiation.

Contact Synway for This Product
Features
  • Build-in SS7, SIGTRAN, SIP, Mecaco
Complimentary standardized SS7 Packets(Up to 64 SS7 links, ISUP, MTP1~3, TCAP), SIGTRAN, Megaco and SIP for any carrier networks worldwide; Field-proven by over 50 largest operators from European, China, USA, India, Brazil, South America;

  • 99.9999% Availability in Full Load
Support 4/8/16/64E1 (120/240/480/1,920Chs) per unit, with higher system responsiveness capability in extreme network for better operational results; High performance and stability in cases of unstable (low) bandwidth and high capacity;

  • Dedicated DSP-Empowered Capability
Telecom-style DSP algorithm has been optimized for over decades, assuring seamless compliance with any network environment. Plentiful DSP resources are allocated for signaling, media processing, bandwidth optimization, Telco redundancy;

  • Highly Adjustable For Diverse SoftSwitch
Homegrown core technologies to assure seamless compliance with diverse softswitch platform, including Mitel, Avaya, Broadsoft, Yate, OpenSIP, Asterisk, VECTRA, VSC, SIPPULSE, Tropico, FreeSwitch and more other softswitch;

  • Integrated Transcoding
Eliminates the need to add separate hardware to support transcoding requirements helping to reduce CAPEX and number of platforms deployed, and support a range of Codecs, including G.723, G.729, G.711, iLBC, SIPINFO, RFC2833, RF3261, INBOUND and more.
Capabilities
  • Rich TDM/SIP Signaling
Provide any-to-any network connectivity through its ability to interwork multiple protocols to deliver services. It can provide interworking between SS1, R2, ISDN, SS7, SIGTRAN, SIP formats and any-to-any media transcoding for popular voice codecs, T.38 and G.711 fax interworking, RTP, INBAND and SIPINFO;

  • Flexible and efficient Gateway Solution
Provide a clear migration path to an all-IP network. It can scale up to 1,920 simultaneous IP sessions and provide impressive sessions per second performance; Support SS7 signaling, call routing, call automated failover from IP to TDM for outbound routing;

  • Robust Telco-Grade Architecture
Dual power supply, 1U compact structure, industrial heating sink system, dual 1,000M Ethernet interfaces, and Telco’ grade hardware architecture ensure 200,000Hr MTBF and 0-defective rate in long lifecycle ;

  • User-friendly WEB Management

Adopt straight-forward configuration to achieve SPs and Operators’ sophisticated objectives. Over 1,000 units of SMG3000 can run together; The Web graphical user interface (WebUI) toolkit performs real-time monitoring and maintenance, and helps configure SIP, SIP trunking, SIP Mediation, PCM, SS7, ISDN, Routing and more;


  • Flexible Scalability
From 30 to 1,920simultaneous SIP sessions with multimedia transcoding provides high performance in a small footprint to help lower ownership cost and operational cost; a broad range of gateway toolkits help gateway’s maintenance and software upgrading for Web UI, gateway services and firmware;
Core Specifications
Product models SMG3000-B1L   1~64E1/T1 and 30~1,920 SIP channels, VoIP Multimedia Trunking Gateway
Routing: Call routing and translation (from PCM to IP or reversely)
Physical Interface RJ48(Impedance 120Ω)
1* RS232, 115200bps
SDN PRI 23B+D(T1),30B+D(E1),NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig
IP Interfaces: Dual redundant 2 *100 Base-T Ethernet for VoIP payload and signaling
IP & PSTN Bearer

Compliant with TLS/SRTP, TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN and more IP protocols
Echo cancellation: G.168 128 ms tail length
VLAN 802.1p/q
Digit transmission via RFC 2833 (SIP)
Hosted NAT
Voice gain output from IP
R2 MFC and other 22 variant standards
E1 Frame Type : DF,CRC-4,CRC_ITU
T1 Frame Type :4-Frame Multi-frame (F4,FT);2-Frame Multi-frame (F12, D3/4);Extended Super- frame (F24, ESF) ;Remote Switch Mode (F72, SLC96); Line Codes: E1:NRZ,CMI,AMI,HDB3;T1:NRZ,CMI,AMI,B8ZS

Voice & Faxing Capability

Default codec:G.711a/μ law, AMR, G.723.1, G.729AB, iLBC (Licensable)
Silence Suppression
Comfort Noise
Voice Activity Detection and packet loss concealment
Echo Cancellation (G.168),with up to 128ms
Adaptive Dynamic Buffer and Static buffer
Voice ,Fax Gain Control
FAX:T.38 and Pass-through
DTMF Mode: RFC2833/SIP Info/In-band
Busy Tone Detection
Provide Ringback Tone
PCM Voice Gain
PSTN Call Forwarding
Hot Back-up for E1
UUI Protocol Discriminator

SDK Features

Local/Transparent Ring Back Tone(self define or upload)
Dialing Rules, with up to 200
Voice Codecs Group
Access Rule Lists      T
ELNET, WEB, FTP,SSH
128 SIP Trunks
Route direction: PSTN-IP, IP-PSTN, PSTN-PSTN , and IP-IP(SBC-enabled)
Working Period define
CDR
DHCP SERVER

Maintenance (OAM&P) Web GUI Configuration, HTTP/HTTPS
NTP Synchronization
Data Backup/Restore
PSTN Call Statistics
SIP Trunk Call Statistics
Firmware Upgrade via TFTP/Web
SNMP v1/v2/v3
Network Capture
Syslog: Debug, Info, Error, Warning , Notice
Call History Records via Syslog
Centralized Management System
IDS, DDOS( only ip to ip feature enable)
Call test
Ping, tracert.
User management
Radius
Firewall(IP tables)
VoIP Protocols Core SIP Specifications and Notable Extensions
Notable SIP Extensions
RFC 3398 ISUP/SIP Mapping
RFC 3711 SRTP (for SIP)
Tel URI – RFC 3966
IP and ISUP interworking and more
SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311
RTP/RTCP, RFC2198, 1889
TLS/SRTP
SIP Trunk Work Mode :Peer/Access
SIP/IMS Registration :with up to 256 SIP Accounts
NAT: Dynamic NAT, Rport
Different method to obtain callerid and calleeid
PAI PPI
RTP Self-adaption, RTP TIMEOUT
TOS DSCP
SIP Trunk Heart
Self definition To Field in INVITE Message
Whilelist blacklist, number pool filtering rule self define
PSTN Signaling Protocols ISDN PRI
MF R2
SS7 ISUP(Optional)
SS7 MTP1~3(Optional)
SS7 SIGTRAN(Optional)
SS7 TCAP(Optional)
QoS Adaptive jitter buffer
Packet loss compensation
Configurable Type of Service (ToS) fields for packet prioritization and routing
Approvals & Compliance About RoHS compliance and other approvals, please contact Synway directly
CE, FCC or Any other Certificates Customizable
EMC/EMI: Compliant with most international standards
Safety: Compliant with most international standards
Telecom Approvals: Compliant with most international standards
