Radar Data Tapping Card

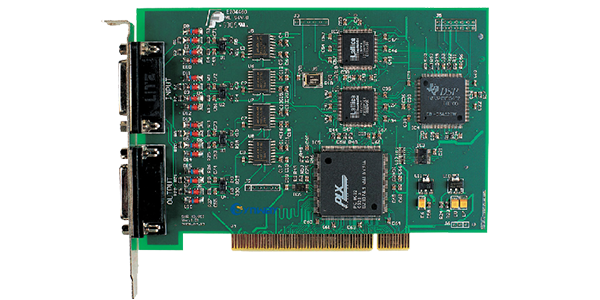

RADAR DATA TAPPING BOARD

4 Ports Radar Data Recording Card to Passively Tap and Monitor Radar

  • DSPs Encoding
  • Half-Length Size
  • PCI/PCIe Footprint
  • Radar Line Tapping
Widest Product Range for Passive and Active Call Recording

For two decades Synway has consolidated its position as a leading International call recording cards and software. Because Synway's products and services react rapidly to unpredictable business and industry environments, they provide continual advantages to small, medium and large scaled developers and end users. Synway has widest product range for call recording applications, including passively tapping into analog lines, E1/T1 lines, digital stations, IP networks, wireless radio, radar lines.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Create Service Account
Features
  • Passively Tapping Into Radar Data Line
High-impedance connection rules out interruption of data transmission on the line ;Supports synchronous simplex transmission per channel, independent data recording and playback

  • PCI 2.1 Bus Support
The SHR-4D/PCI board includes PCI 2.1 bus with burst data transmission rate up to 133 MB/s, and supports the PNP (plug and play) feature which eliminates the need for jumper leads.

  • Adjustable Recording/playback Rate
Data recording rate is automatically modulated to accept input signals in the range of 300-38400 baud rate and playback rate is configurable via a function call with applications.

  • 1 to 4 Port Hi-Z Monitoring
Flexible positioning of the access point on the communication line between radar and terminal. The data recording and monitoring system which composes of Synway’s voice boards and radar data recording boards enables voice and data communication with the airline dispatchers, providing ATC with an all-in-one solution for voice and radar data recording.

  • Driver’s Programming Mode
Two modes support: Polling mode and event mode (callback mode).

  • Unique Hardware Serial Number
Each board has a unique hardware serial number written in the firmware to distinguish itself from other boards and prevent piracy. The number is available via an easy function call with
applications.
Capabilities
  • Highly Efficient Data Processing
Synchronous serial communication interfaces support digitization of data into a bit-stream record file; Supports simultaneous data recording and playback on 4 channels.

  • PCI Express 2.0 Bus Support
The SHR-4D/PCIe board includes PCI Express 2.0 bus and supports the PNP (plug and play) feature which eliminates the need for jumper leads.

  • DB15 Port
Easy parallel connection to on-board DB15 port via high impedance with a low malfunction rate, signal level complying with the RS232 standard.

  • High Input Impedance
Data input impedance is greater than 50KΩ, ensuring full-speed transmission of monitored signals.

  • Authorized Code Identification Circuit
The on-board authorized code identification circuit is designed
for software safety. Users can apply to our company for the authorized code.

  • Driver Requirements
Uses an independent driver, allowing share of a software platform with other SynCTI voice boards to enable simultaneous voice processing and radar data recording in a system.

  • Powerful API
Simple programming algorithm for rich functions.

Core Specifications
Dimensions
106 *155mm2 (excluding fixed slider)
Weight: About 200g
Environment Operating Temperature: 0℃—55℃
Storage Temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage Humidity: 8%— 90% non-condensing
Input/output Interface Two DB15 Ports
Maximum System Capacity
Up to 10 boards concurrently per system;
up to 4 channels per board
Power Requirements

+5V DC: 600mA
-12V DC: 80mA
+12V DC: 300mA
Maximum Power Consumption: ≤5W

Input Impedance Bigger than 50k Ohms
Transmission Rate 300/600/1200/2400/4800/9600/
19200/38400 bps
Safety
Lightning Resistance: Level 4
Certification: FCC; CE; CCC
