E1/T1 Recording Server

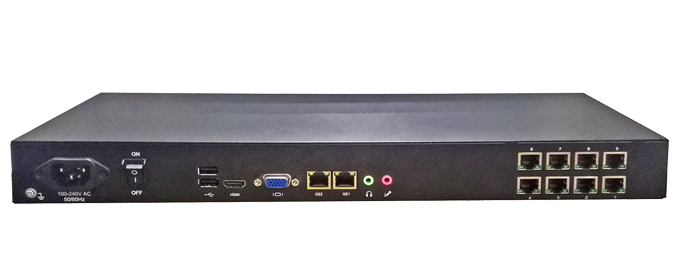

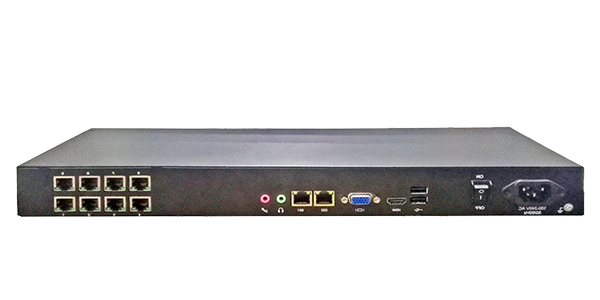

E1/T1 RECORDING SERVER

1-8 Ports E1/T1 Recording System to Passively Tap and Monitor

  • DSPs Encoding
  • 1U Footprint
  • PCI/PCIe Footprint
  • Digital Recording Server
Widest Product Range for Passive and Active Call Recording

For two decades Synway has consolidated its position as a leading International call recording cards and software. Because Synway's products and services react rapidly to unpredictable business and industry environments, they provide continual advantages to small, medium and large scaled developers and end users. Synway has widest product range for call recording applications, including passively tapping into analog lines, E1/T1 lines, digital stations, IP networks, wireless radio, radar lines.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Contact Synway for This Product
Features
  • Robust architecture for E1/T1 call recording
1U height, standard rack design; support bidirectional recording for 1~8E1/T1 interface; support the global protocols with high interoperability; support DSP-based compression coding format; web-based recording system management software; support recording data storage, query and real-time monitoring

  • Support multiple protocols and recording modes
DTP800 supports 8 E1/T1 ports at maximum, a range of protocols such as SS1, SS7 (Tup, ISUP), ISDN signaling call status analysis and voice signal analysis, and can be configured for inbounding recording, outbound recording, and mixed in/outbound ones.

  • Support multiple speech coding formats
DTP800 supports DSP-based a-law (g. 711), Μ-law, IMA-ADPCM, GSM, MP3 and G. 729A format coding, and software processing -linear PCM, VOX format Codecs. It can adapt to any recording environment in the world for short time to market.
Capabilities
  • Add special values for end users
Call recording, as a basic function of communication system, has its tangible value and been widely used. At present, Synway has the world's most complete production range, including: Analog passive recording, E1/T1 passive recording, digital phoneset passive recording, VoIP recording and others.

  • Adopt hi-impedance multiplexing mode
DTP800 supports high impedance, and does not affect the normal operation of the system. And DTP800 has a strong signal adaptive ability, and can tap into line at any point to monitor call conversation.

  • Have recording data storage, query function
DTP800 supports recording data storage, query function, exporting data report. With 2T data hard disk, it can work in uninterruptive 96 days. Recording data can also be stored offsite over the network.


Core Specifications
Configuration
DTP800-1 E1/T1: Intel 1.8G Dual core CPU,1T HDD
DTP800-2 E1/T1: Intel 1.8G Dual core CPU,1T HDD
DTP800-4 E1/T1: Intel 1.8G Dual core CPU,2T HDD
DTP800-8E1/T1: Intel 1.8G Dual core CPU,2T HDD
Dimensions 440×44×200 mm(long*High*Deep)
Weight:
About 3 kg (Excluding hard disk and accessories)
Environment Operating temperature: 0℃—55℃
Storage temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage humidity: 8%— 90% non-condensing
Input/output Interface
E1 Physical Ports: compliant with G703, including 75Ω unbalanced interface and 120Ω balanced interface; T1 Physical Ports:DSX-1 and CSU line build-outs available for different extents of signal losses, including 100Ω and 110Ω balanced interfaces
Signaling protocols

SS1: compliant with international GF002-9002 (DL and MFC)
SS7: compliant with Q771-Q795
DSS1: compliant with Q.933
ISDN-PRI

Audio Specifications Codec: CCITT A/μ-Law  64kbps
IMA ADPCM    32kbps
G.729A 8kbps
GSM 13.6kbps
MP3 8/16kbps
Frequency response: 300-3400Hz(±3dB)
AGC:-20db——0db
Maximum System Capacity Up to 8E1/T1 in single chassis
Power Requirements
Maximum power consumption: ≤28W
Input impedance: 1 KΩ(AC)
Input interface: RJ48C
Audio Encoding & Decoding 16Bit PCM    128kbps
8Bit PCM     64kbps
A-Law        64kbps
μ-Law        64kbps
VOX         32kbps
ADPCM      32kbps
GSM         13.6kbps
MP3         8/16kbps
G.729A      8kbps
Sampling Rate
8kHz
Safety Lightning resistance: Level 4
Certification
International standards
