CALL RECORDING CARDS & SOLUTION

PCM32  Tapping Card

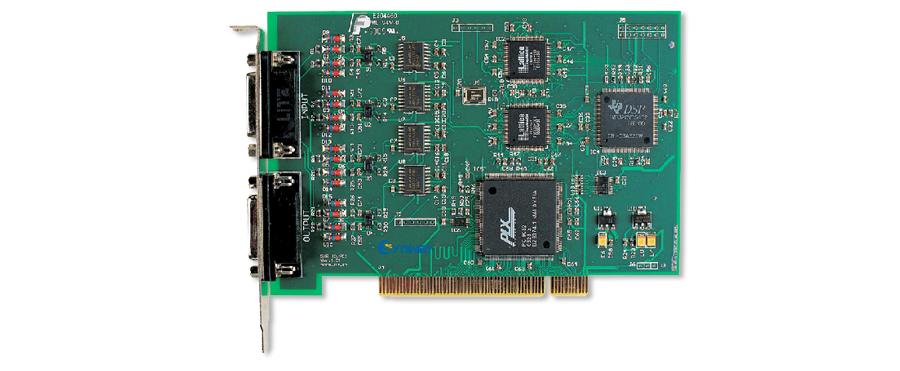

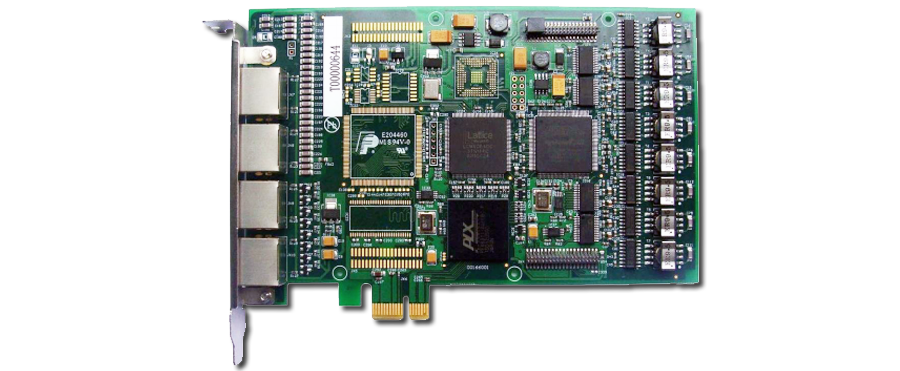

PCM32 TAPPING BOARD

Hi-Capacity 64/128Chs PCM32 Line Recording Card to Passively Tap and Monitor PCM lines

  • DSPs Encoding
  • Half-Length Size
  • PCI/PCIe Footprint
  • PCM32 Passive Tapping
Widest Product Range for Passive and Active Call Recording

For two decades Synway has consolidated its position as a leading International call recording cards and software. Because Synway's products and services react rapidly to unpredictable business and industry environments, they provide continual advantages to small, medium and large scaled developers and end users. Synway has widest product range for call recording applications, including passively tapping into analog lines, E1/T1 lines, digital stations, IP networks, wireless radio, radar lines.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Contact Synway for This Product
Features
  • PCIe Bus Support
Using the design of PCIe X1, supports PCIe X1, X2, X4, X8 and X16 slots.

  • DMA Transfer Support
The DMA transfer of recording data does not cost any of host CPU resources, which fully enlarges the recording capacity of a single board.

  • High-impedance Recording
The recording impedance is over 1KΩ AC, ruling out interruption on transmission of monitored signals.

  • Unique Hardware Serial Number
Each board has a unique hardware serial number written in the firmware to distinguish itself from other boards and prevent piracy. The number is available via an easy function call with applications.

  • Authorization Code Identification Circuit
The on-board authorization code identification circuit is designed for software safety. Users can apply to our company for the authorization code.
Capabilities
  • Available RJ45 Connector with Yellow/Green Bi-color LED
This board adopts the widely used RJ45 connector, making connection easy and malfunctions rare. With the different ranges of the bi-color LED, it can indicate various line states.

  • Recording of On-line Source Code Stream
When using the board, any problem found on the monitored line can be located and settled as soon as possible via remote debugging with the cooperation of users.

  • Instantly-upgradeable Hardware Circuit
Using instantly-upgradeable hardware circuits helps the debugging for abnormal situations.

  • Synway’s Unified SynCTI Driver Development Platform
Synway owns the intellectual property rights for the unified high-intelligence SynCTI driver development platform. Each system supports up to 128 or 64 channels.
Core Specifications
Dimensions
160×111mm2 (excluding L-bracket)
Weight: ≈ 115g
Environment Operating temperature: 0℃—55℃
Storage temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage humidity: 8%— 90% non-condensing
Input/output Interface Input: Four RJ45(PCM1280E)
          Two RJ45(PCM640E)
Recording Specifications
Recording Format: CCITT A/μ-Law  64kbps (original line format, unconverted)
Maximum System Capacity

Up to 10 PCM1280E boards concurrently per system; up to 128 channels per recording board

Power Requirements 8kHz
Maximum System Capacity Up to 8 boards concurrently per system; each board can monitor up to 4 E1/T1 trunks
Power Requirements
+3.3V DC: 1200mA
+12V DC: 150mA
Maximum power consumption: ≤6.8W (PC power supply only)
Impedance Input impedance: 120Ω AC or ≥1000Ω AC
Insulation resistance for PC isolation from telephone line: ≥20MΩ/500V DC
