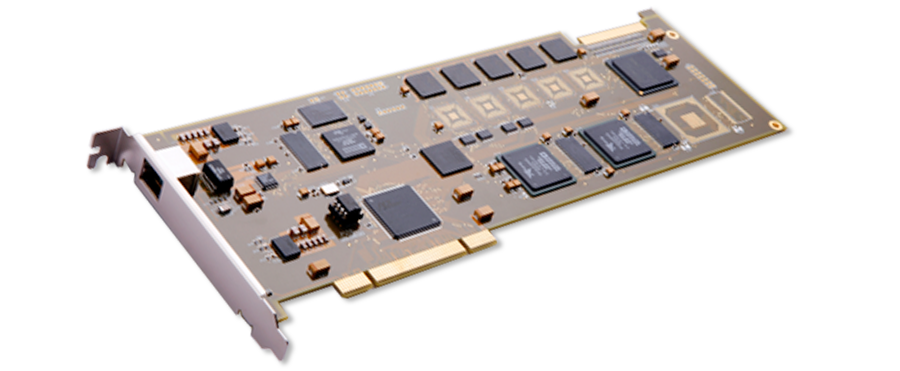

VoIP Trunking Board (SHN)

IP Trunking Board (SHN)

Processing and Transfer RTP in VoIP Networks and Processor-Empowered for Faxing Processing

  • CPU Processing
  • Pure SDK Install
  • VoIP Trunking App
  • 2,000Chs Per System
A Wide Range of Voice-Based Solutions

Synway’s IP & TDM Products consist of multiple product lines: SHN series for IP network, SHD series for E1/T1/J1 digital network, and SHT series with analog interface, Host Media Processing platform. Besides a complete range of media resources, such as fax, conferencing, compression, echo cancellation for voice enhancement, they also combine various built-in signaling protocol software packets, which include SIP, H.323, SS7 (ISUP/TCAP/TUP/MTP), ISDN variants, CAS and more.

Powerful media processing and signaling capability

HMP & DSP-Based Telephony Boards have a whole family product like for Analog, Digital, Trunking, SIP interfaces and more; These products feature powerful Signaling(SIP/SS7/ISDN) and Media Processing(Audio, Faxing, Conferencing), and Widely Used in Contact Center, IVR, OBD/IBD, Call Accounting, UC and More.

Powerful media processing and signaling capability

HMP & DSP-Based Telephony Boards have a whole family product like for Analog, Digital, Trunking, SIP interfaces and more; These products feature powerful Signaling(SIP/SS7/ISDN) and Media Processing(Audio, Faxing, Conferencing), and Widely Used in Contact Center, IVR, OBD/IBD, Call Accounting, UC and More.

Contact Synway for This Product
Features
  • ALL-IN-ONE architecture
Integrated SIP signaling and multimedia processing Helps VoIP developers to integrate all cost-effective, scalable, feature-rich IP telephony applications and value-added services in single box in IP networking environments.

  • Rich media processing
conferencing, compression, fax, echo cancellation, call control; Support for enhanced multimedia processing resources, including conferencing, IVR, fax, compression, echo canceller, call control , help developers develop feature-rich applications

  • Signaling protocols: SIP/MGCP
Offer robust SIP signaling technologies for service providers and applications developer to develop and deploy high capability, high performance and highly available enhanced services in PSTN and PLMN networks

  • Universal user-friendly SHCTI API
supports for a range of calling features ; Unified API architecture minimizes efforts on application development and deployment, and PSTN-based or SIP-based applications can be migrated among all Synway's hardware platforms
Capabilities
Optional form factor
PCI, PCI-X*, PCI-express* interface; Support existing or next-generation form factor of network infrastructure, server or chassis without altering application programming interfaces

Global approval
Deployed into large-scale call center application, value-add service, unified messaging solution by world-class application developers and service providers

High Scalability
Scalable and upgradeable up to 120 ports per slot, maximum 1920 ports per system ;Cost effective and scalable hardware for a broad range of applications, and specifically designed to fulfill demands in high capacity, highly available and redundant system architecture.

Core Specifications
Function List
  • A single board has 32 IP channels; a single PC supports up to 2 SHN-32A-CT/PCI boards.
  • Each board can be configured
  • Supports the following functions during the call: voice recording and playing, volume adjustment, active/silence detection, voice QoS service assurance, dynamic CODEC change, etc.
  • All channels are allowed to play/record voices simultaneously; supports Automatic Gain Control (AGC) in recording operation.
  • Supports call transfer and call hold during IP calls. Allows DTMF signal transmission and detection by any of the three methods: in-band, out-of-band (RFC2833), Signaling (SIP-INFO or H245 signaling).
  • Includes H.100 bus, compatible with MVIP, SC and ST bus, facilitating smooth connectivity to third-party boards with H.100 bus for the transfer of voice data from/to other devices.
  • The flexible distributed conferencing system sets no limit on the number of simultaneous conferences and participants in each conference, allows monitoring and recording of the whole conference and each individual speaker.
  • Each board has a unique hardware serial number written in the firmware to distinguish itself from other boards and prevent piracy.
  • The on-board authorization code identification circuit is designed for software safety. Users can apply to our company for the authorization code.

Dimensions
312×111mm2 (excluding L-bracket)
Weight:≈ 215g
Environment Operating temperature: 0℃—55℃
Storage temperature: -20℃—85℃
Humidity: 8%— 90% non-condensing
Storage temperature: 8%— 90% non-condensing
On-board LAN Interfaces: 2 (10/100/1000M BASE-TX (RJ-45))
Self-adaptive bandwidth: Support
Automatic reversal: Support
Recording/Playing Format
A-Law, µ-Law, ADPCM
Maximum System Capacity

Theoretically up to 2 VoIP boards concurrently per system

Audio CODEC G.711A, G.711U, G.729A/B, G.722, G.723.1, AMR, iLBC
Sampling Rate 8kHz
Power Requirements
Maximum power consumption: ≤30W
