Fax Processing Board(FAX)

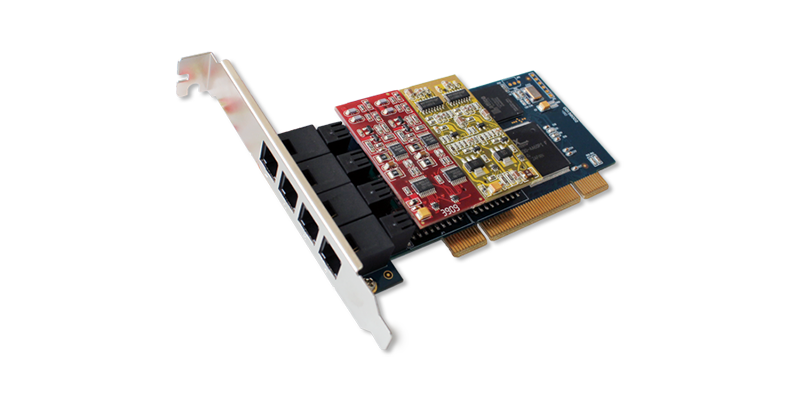

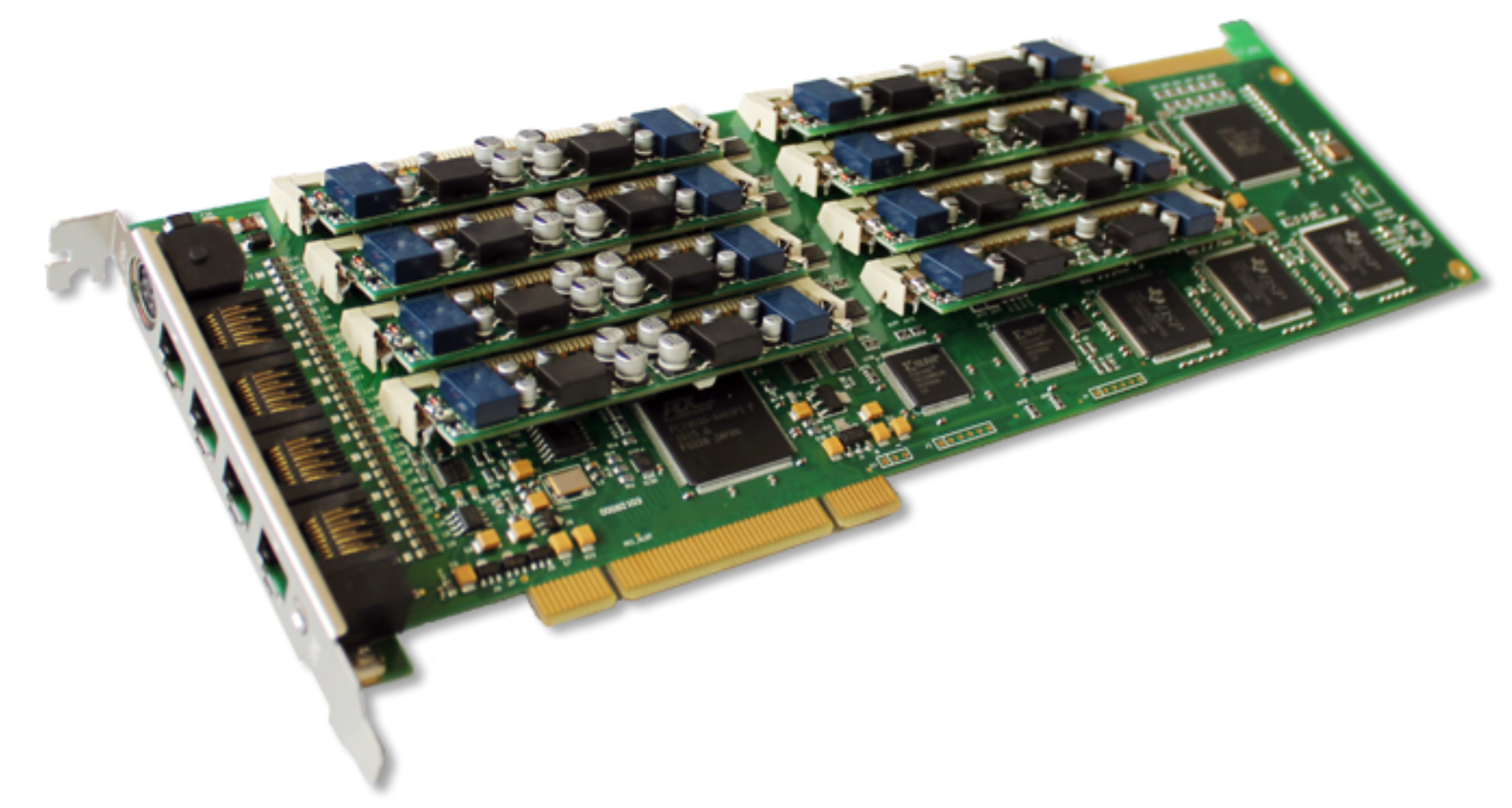

Fax Processing Board

DSP-Empowered for Faxing Processing, 4Chs per Board

  • CPU Processing
  • Pure SDK Install
  • VoIP Trunking App
  • 2,000Chs Per System
A Wide Range of Voice-Based Solutions

Synway’s IP & TDM Products consist of multiple product lines: SHN series for IP network, SHD series for E1/T1/J1 digital network, and SHT series with analog interface, Host Media Processing platform. Besides a complete range of media resources, such as fax, conferencing, compression, echo cancellation for voice enhancement, they also combine various built-in signaling protocol software packets, which include SIP, H.323, SS7 (ISUP/TCAP/TUP/MTP), ISDN variants, CAS and more.

Powerful media processing and signaling capability

HMP & DSP-Based Telephony Boards have a whole family product like for Analog, Digital, Trunking, SIP interfaces and more; These products feature powerful Signaling(SIP/SS7/ISDN) and Media Processing(Audio, Faxing, Conferencing), and Widely Used in Contact Center, IVR, OBD/IBD, Call Accounting, UC and More.

Powerful media processing and signaling capability

HMP & DSP-Based Telephony Boards have a whole family product like for Analog, Digital, Trunking, SIP interfaces and more; These products feature powerful Signaling(SIP/SS7/ISDN) and Media Processing(Audio, Faxing, Conferencing), and Widely Used in Contact Center, IVR, OBD/IBD, Call Accounting, UC and More.

Contact Synway for This Product
Features
Supports up to 2400 IP channels
Supports recording and playing, dynamical change in CODEC format, etc.
Allows simultaneous voice recording and playing on all channels
supports Automatic Gain Control (AGC) in recording operation
IP call transfer and hold support
Allows DTMF transmission and detection in SIP-INFO and RFC2833
Allows the detection of In-band DTMF
The flexible distributed conferencing
Capabilities
Supports three programming modes: Polling, Event callback and Windows message
Supports A-Law, μ-Law, etc.
Supports WAV File
The recorded voice files can be edited and played by audio tools
Supports the Barge-in function.
Distributed module deployment and expansion
Receiving and transmitting RTP data in different encoding formats
Various IP CODECs Supported
Currently supports G.711 A-Law, G.711 μ-Law, G.729 and.AMR-NB, etc.
Core Specifications
PCI 2.2 Bus Support
Includes PCI 2.2 bus with 32/64-bit PCI slot and 3.3V/5V slot voltage; operable on device platforms which support PCI-X.

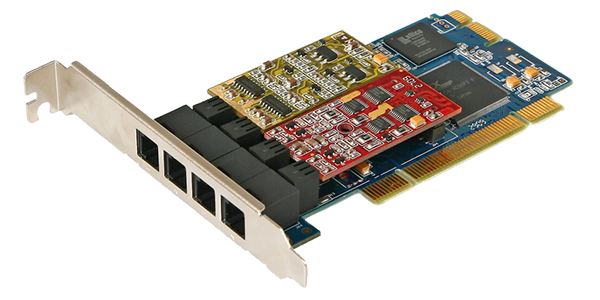

Module Configurable
The on-board dual-channel modules can be freely arranged in pairs or groups for various complex.

Interface
The on-board RJ11 jack can connect directly to telephone lines, making connection easy and malfunctions rare.

Power
The power is supplied by PCI slot, eliminating the need for external power source.

Indicator
Rear projection indicators. We make use of the gaps between RJ11 jacks and the light-admitting quality of the jack to hide the indicators behind the RJ11 jacks. Such design not only ensures the neatness of the board, but also allows you to get the module type and errors in running without opening the main frame.

Programmable Tone Detector
Detects single or dual tones at any frequency, offering facility for use with a variety of PBXes and key telephone systems.

Professional Driver Algorithm
Uses SPECDial - a professional driver algorithm - to perform a complete automatic dial process through analog lines, accurately identifies called-party statuses and precisely distinguishes an answering machine from a fax machine that is responding at the remote end.

Echo Cancellation
The self-adaptive echo cancellation feature effectively eliminates echoes under various conditions, which cancels out the effect of voice playback on DTMF and busy tones detection, avoids self-excited oscillation and howling, and minimizes the possibility of registering wrong DTMF and busy tones in a conference call.

Various CODECs Support
Offers a large selection of voice CODECs, including hardware-based A-law, μ-law, IMA-ADPCM, software-based 16-bit linear PCM, MP3 and VOX.

Supports WAV File
The recorded voice files can be edited and played by audio tools such as Cooledit.

Synway’s Unified SynCTI Driver Development Platform

Synway owns the intellectual property rights for the unified high-intelligence SynCTI driver development platform. Each system supports up to 2048 channels. Functions such as the detection and analysis of rings, tones and Caller IDs, are available via simple function calls on the driver platform, without having to understand complex call procedures.


Dimensions

132.5x64 mm2 (excluding L-bracket)

Weight Motherboard: about 70g
(excluding modules)
Module: about 10g
Environment Operating temperature: 0℃—55℃
Storage temperature: -20℃—85℃
Humidity: 8%—90% non-condensing
Storage humidity: 8%—90% non-condensing
Input/output Interface
Telephone line jack: 2~4 4-pin RJ11
Maximum System Capacity

Up to 100 channels concurrently per syste

Power Requirements
Only motherboards               (with modules fully inserted)
+3.3V DC: 1500mA              (power consumption: 4.95W)
+12V DC: 500mA                 (power consumption: 6W)
Impedance Insulation resistance for PC isolation from telephone line: ≥2MΩ/500V DC
Telephone line impedance: Compliant with the national standard impedance for three-component network
Audio Encoding & Decoding
16Bit PCM     128kbps; 8Bit PCM      64kbps; A-Law       64kbps; µ-Law        64kbps
VOX         32kbps; ADPCM     32kbps; GSM        13.6kbps; MP3             8kbps
Sampling Rate
8 kHz
Safety
Lightning Resistance: Level 4
